5104 LP PCI RS-232; 422; 485; 530; 530A; V.35

5104-ROHS

  • The 5104 adds one synchronous serial port configurable for RS-232, RS-422, RS-485, RS-530, RS-530A, or V.35
Print Page

Product Details

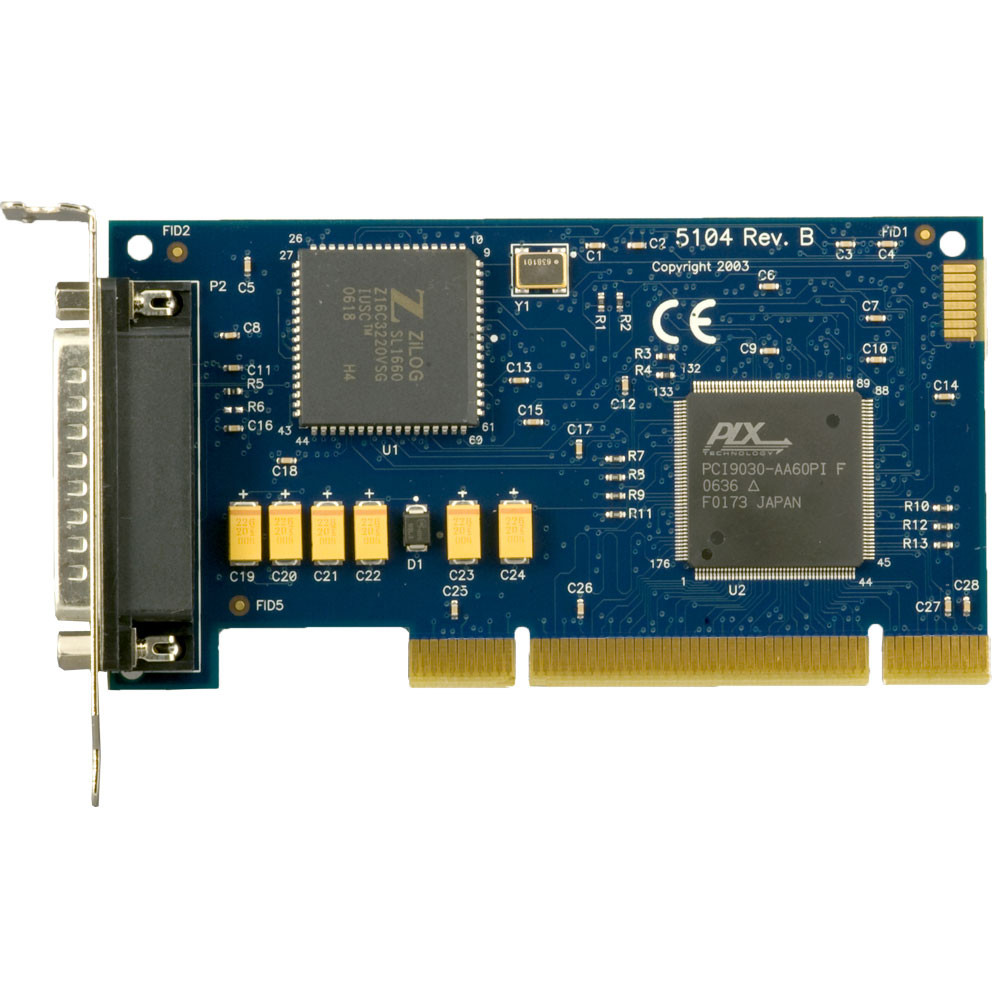

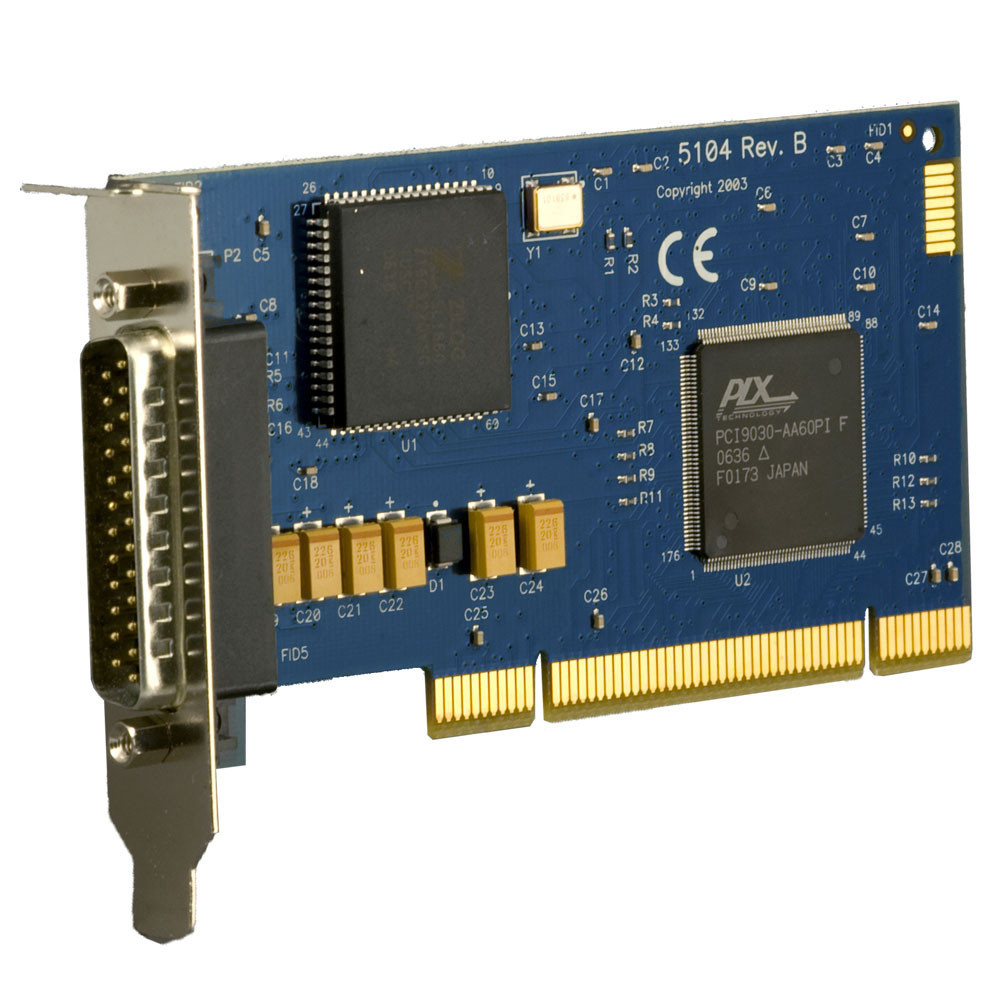

The 5104 Low Profile PCI serial interface provides one synchronous serial port configurable for RS-232, RS-422, RS-485, RS-530, RS-530A, or V.35. The board is capable of data rates to 10M bps. The 5104 utilizes a Z16C32 Integrated Universal Serial Controller (IUSC) with built-in DMA controller and 32-byte FIFO buffer. The board is MD1 Low Profile and Universal Bus (3.3V and 5V) compatible.

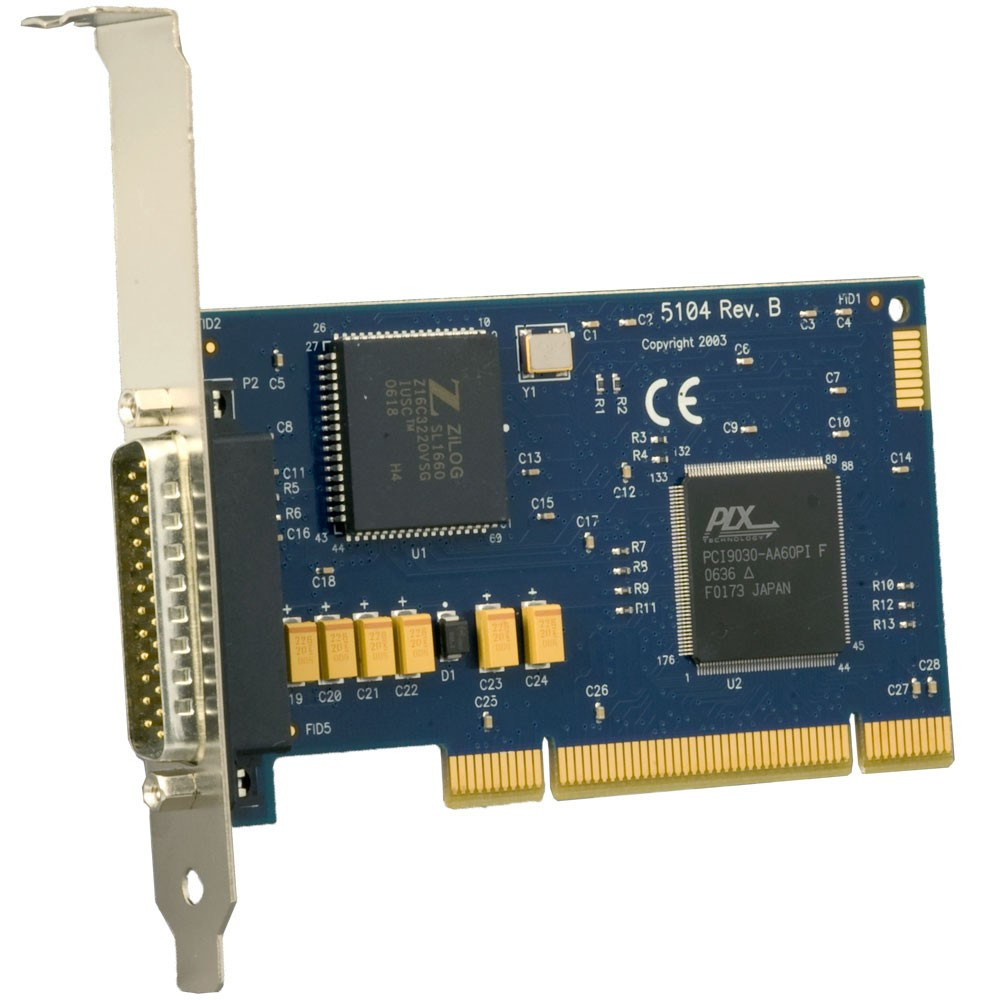

The 5104 is compatible with any low profile PCI slot. A standard profile bracket is also included.

Software support, critical for successful synchronous communication development, is provided through Sealevel’s SeaMAC synchronous serial driver. HDLC/SDLC protocols are supported as well as certain configurations of Monosync, Bi-sync and Raw modes.


  • Specifications
  • Features
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI

  • Max Data Distance

    50 feet (RS-232) 4000 feet (RS-485)

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • Communications Chip

    Z16C32 IUSC

  • Electrical Interface

    RS-232, RS-422, RS-485, RS-530, RS-530A

  • # of Ports

    1

  • Max Data Rate

    10M bps (RS-422, RS-485), 20 Kbps (RS-232)

  • Card Height

    Low Profile

  • Synchronous / Asynchronous

    Synchronous

  • Serial Connector(s)

    DB25
