Low Profile PCI 8-Port RS-232 Serial Interface Low Profile PCI 8-Port RS-232 Serial Interface Low Profile PCI 8-Port RS-232 Serial Interface

Low Profile PCI 8-Port RS-232 Serial Interface

$635.00

7803c

  • The 7803c Low Profile PCI serial interface provides eight RS-232 serial ports capable of data rates up to 230.4 Kbps from a single PCI slot
Adding to cart… The item has been added
Print Page

Product Details

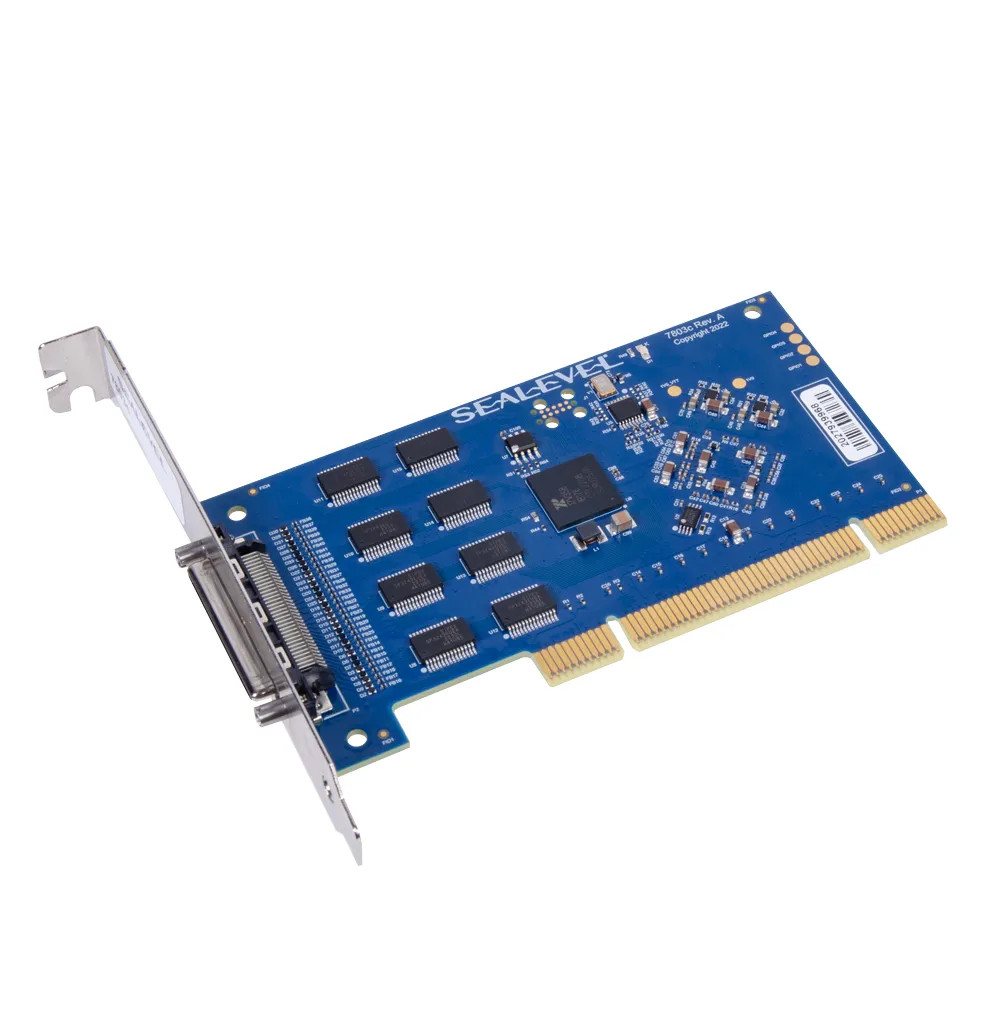

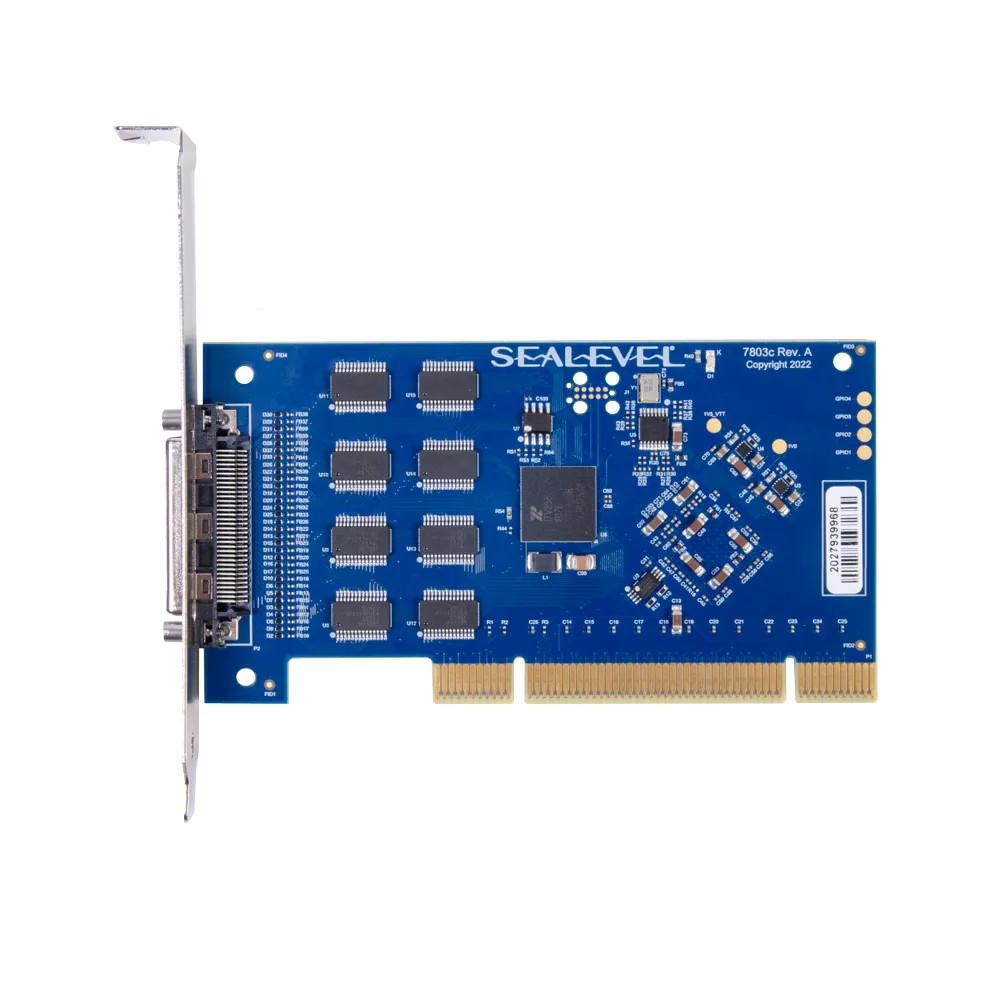

The 7803c Low Profile PCI serial interface provides eight RS-232 serial ports capable of data rates up to 230.4 Kbps from a single PCI slot. Each RS-232 port implements all modem control signals for maximum compatibility with a wide range of serial peripherals. The 7803c utilizes an enhanced 16550 compatible 8-port UART that provides 256-byte Tx/Rx FIFOs and allows the adapter to support a wide range of non-standard baud rates. These features make the 7803c ideal for data-intensive applications that require reliable, fast throughput rates. The 7803c card can work in tough environments with an operating temperature range of 0°C to 70°C (32°F to 158°F). The 7803c is PCI Local Bus v3.0 Compliant.

The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows operating systems.

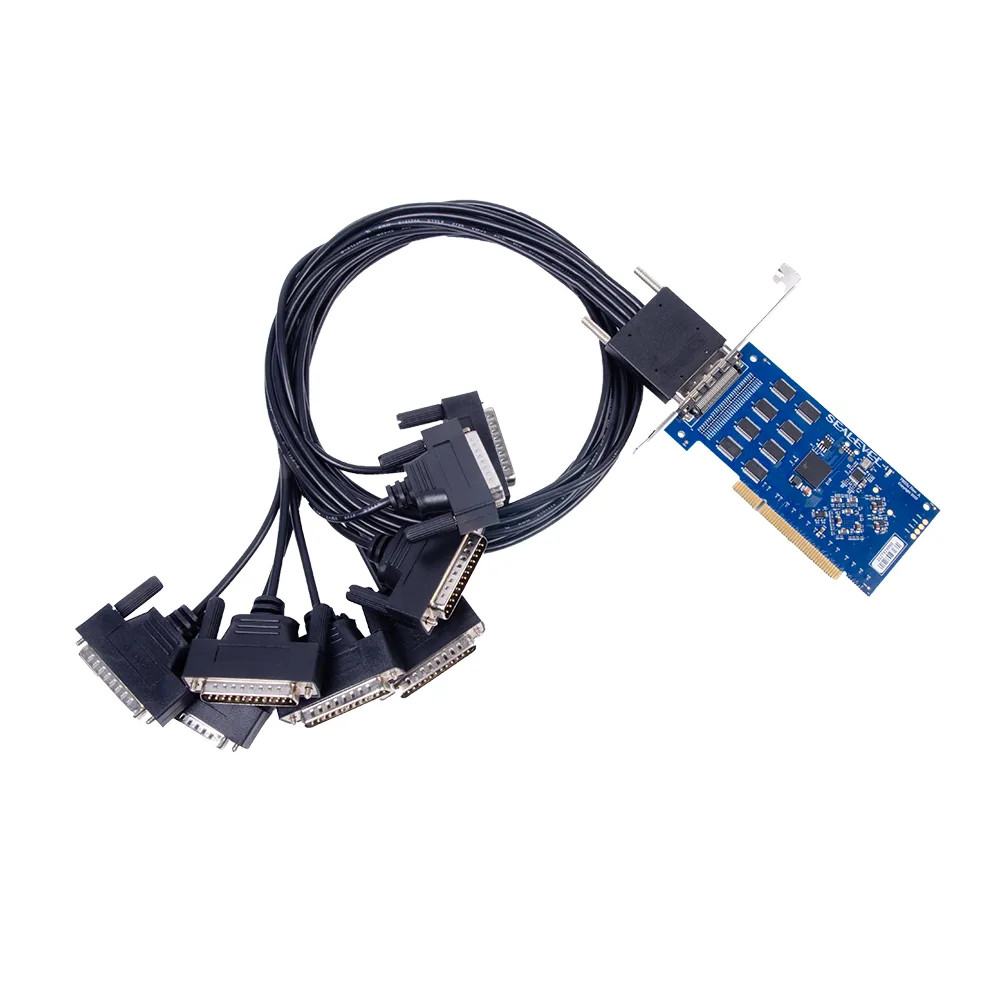

The board includes your choice of 36-inch spider-cable that terminates to eight DB25M (CA202) or DB9M (CA231) connectors.

  • Specifications
  • Features
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI

  • Max Data Distance

    50 feet

  • Max Data Rate

    460.8K

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • # of Ports

    8

  • Serial Connector(s)

    DB25M

  • Storage Temperature

    -50°C to 105°C (-58°F to 221°F)

  • Communications Chip

    16C864

  • Electrical Interface

    RS-232

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

  • Card Height

    Low Profile

  • Synchronous / Asynchronous

    Asynchronous

Features

Software & Documentation

Recommended Accessories

!
