ULTRA COMM+2.PCI: 2 Port PCI RS-232/422/485 Serial Adapter ULTRA COMM+2.PCI: 2 Port PCI RS-232/422/485 Serial Adapter

ULTRA COMM+2.PCI: 2 Port PCI RS-232/422/485 Serial Adapter

Call for Price

7201-ROHS

  • This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing, product availability, and recommended alternatives.
Print Page

Product Details

This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing, product availability, and recommended alternatives.

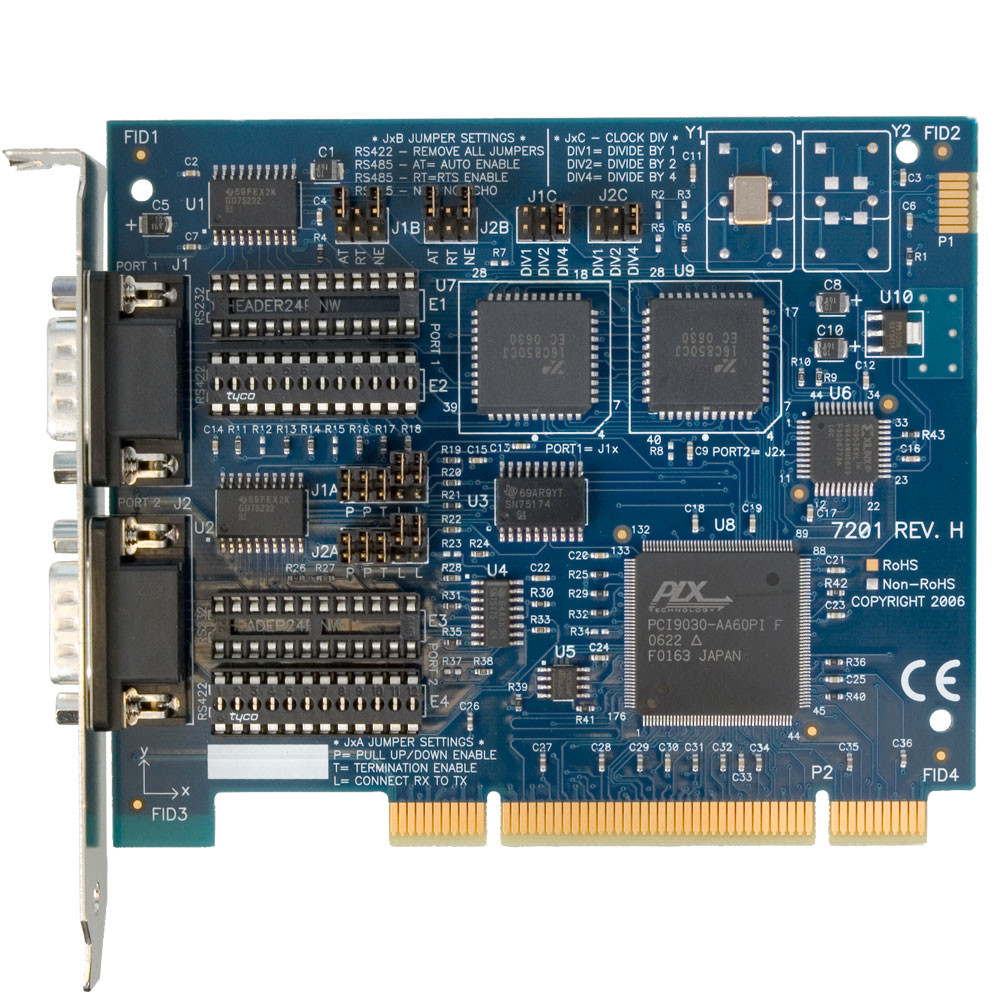

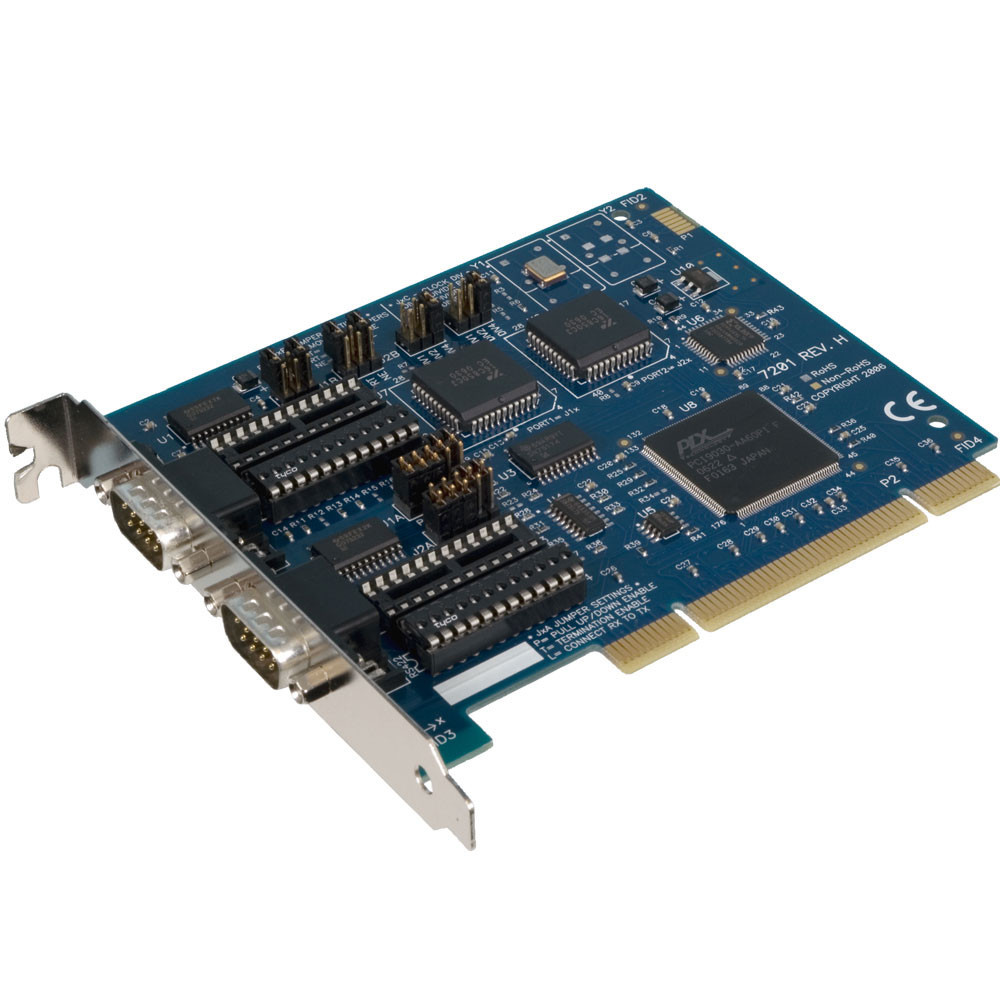

The 7201 PCI serial interface provides two serial ports, each individually configurable for RS-232, RS-422, or RS-485. The board is capable of data rates to 460.8K bps and automatically handles RS-485 transmitter enable/disable. The 7201 utilizes 16C850 UARTs that provide 128-byte Tx/Rx FIFOs and is Universal Bus (3.3V or 5V) compatible. Ordering options allow the choice of UARTs with larger FIFOs and support for custom baud rates.

Sealevel's SeaCOM software makes installation and operation easy using Microsoft Windows and Linux operating systems.

  • Specifications
  • Features
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI

  • Max Data Distance

    4000 feet

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • Communications Chip

    16C850

  • Electrical Interface

    RS-232, RS-422, RS-485

  • Max Data Rate

    460.8K bps

  • Card Height

    Standard Profile

  • # of Ports

    2

  • Serial Connector

    DB9

  • Synchronous / Asynchronous

    Asynchronous

Features

Software & Documentation

Recommended Accessories

!
