ACB-MP.PCI

ACB-MP.PCI

Call for price

5102S

  • Configurable for RS-232, RS-422, RS-485, RS-530, RS-530A, or V.35 Z85230 Enhanced Serial Communications Controller (ESCC) Data rates to 128K bps DB-25M connector X.21 and RS-449 serial interface capability with versatile cabling options
Print Page

Product Details

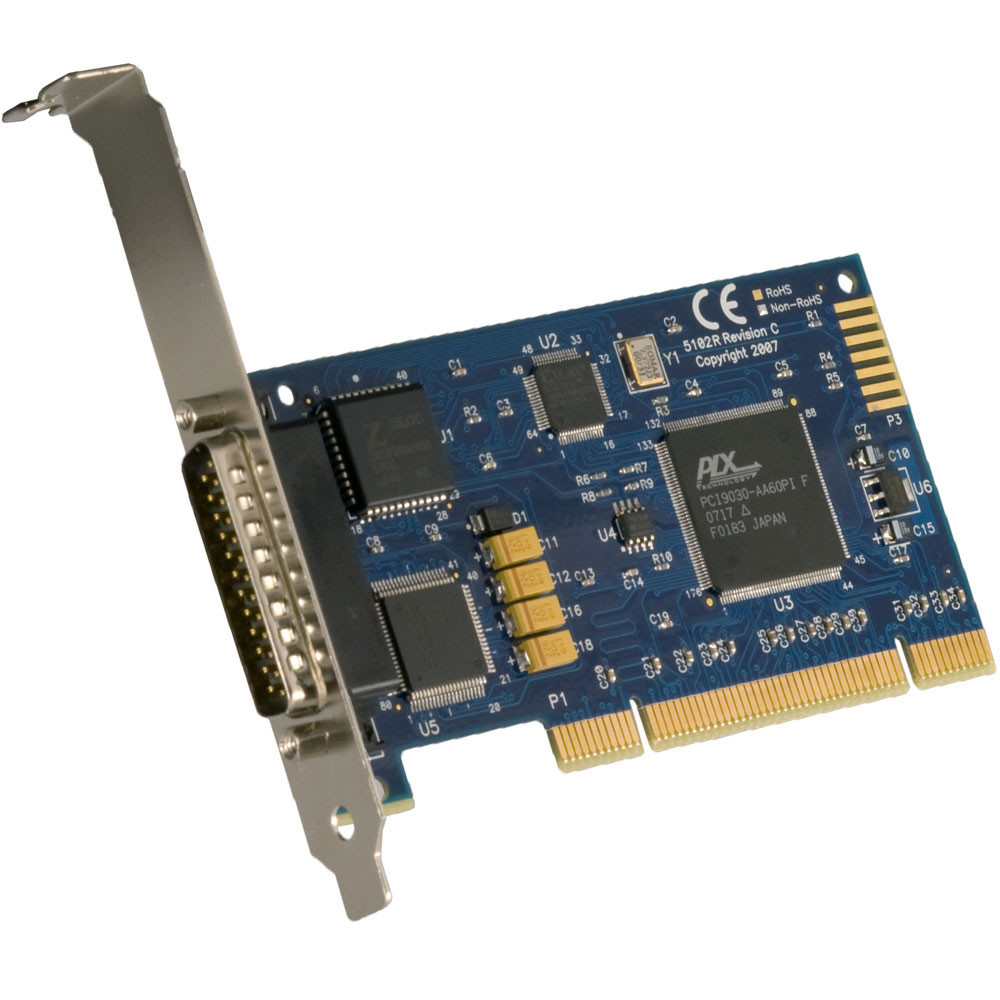

The 5102 PCI synchronous serial interface adapter provides the PC with a single channel serial interface suitable for many popular communications protocols. This Sync/Async card is an ideal solution for applications including DDS (digital data service), military applications, banking communications, and other specialized applications. Our Software toolkit is included to aid software driver development for other operating systems by providing programming samples and source code to shorten development time.

The 5102S is for use in standard size PCI slots only. If you have a Low Profile PCI slot order the 5102.

Software support, critical for successful synchronous communication development, is provided through Sealevel’s SeaMAC synchronous serial driver. HDLC/SDLC protocols are supported as well as certain configurations of Monosync, Bi-sync, and Raw modes.

  • Specifications
  • Features
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI (Standard Profile)

  • Max Data Distance

    50 feet (RS-232) 4000 feet (RS-485)

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • # of Ports

    1

  • Serial Connector(s)

    DB25

  • Synchronous / Asynchronous

    Synchronous

  • Card Height

    Standard Profile

  • Max Data Rate

    128K bps

  • Electrical Interface

    RS-232, RS-422, RS-485, RS-530, RS-530A

Features

Software & Documentation

Recommended Accessories

!
