ULTRA COMM+422.PCI: 4 Port PCI RS-422/485 Serial Adapter ULTRA COMM+422.PCI: 4 Port PCI RS-422/485 Serial Adapter

ULTRA COMM+422.PCI: 4 Port PCI RS-422/485 Serial Adapter

Call for price

7402-ROHS

  • THIS PRODUCT IS OBSOLETE DUE TO LACK OF COMPONENT AVAILABILITY. PLEASE CONTACT YOUR SALES REPRESENTATIVE FOR FURTHER INFORMATION AND NEW PRODUCT ALTERNATIVES.
Print Page

Product Details

THIS PRODUCT IS OBSOLETE DUE TO LACK OF COMPONENT AVAILABILITY. PLEASE CONTACT YOUR SALES REPRESENTATIVE FOR FURTHER INFORMATION AND NEW PRODUCT ALTERNATIVES.

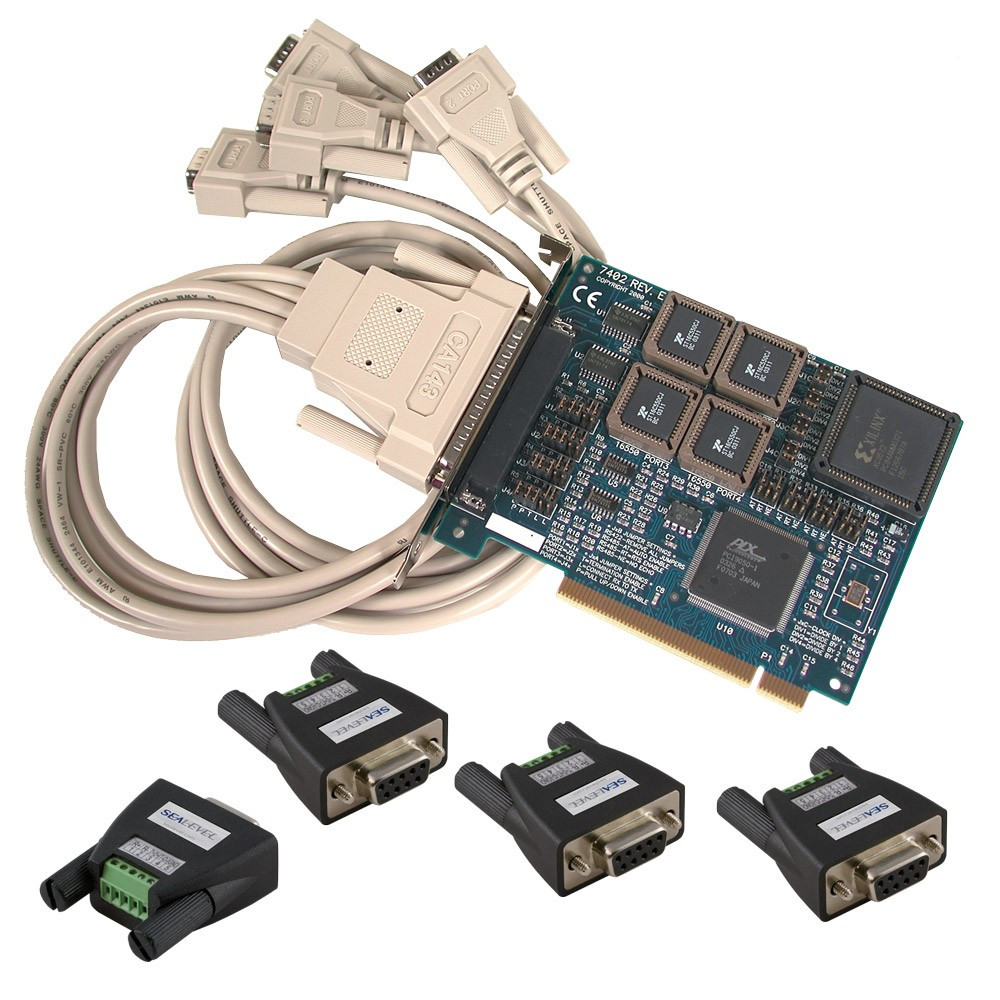

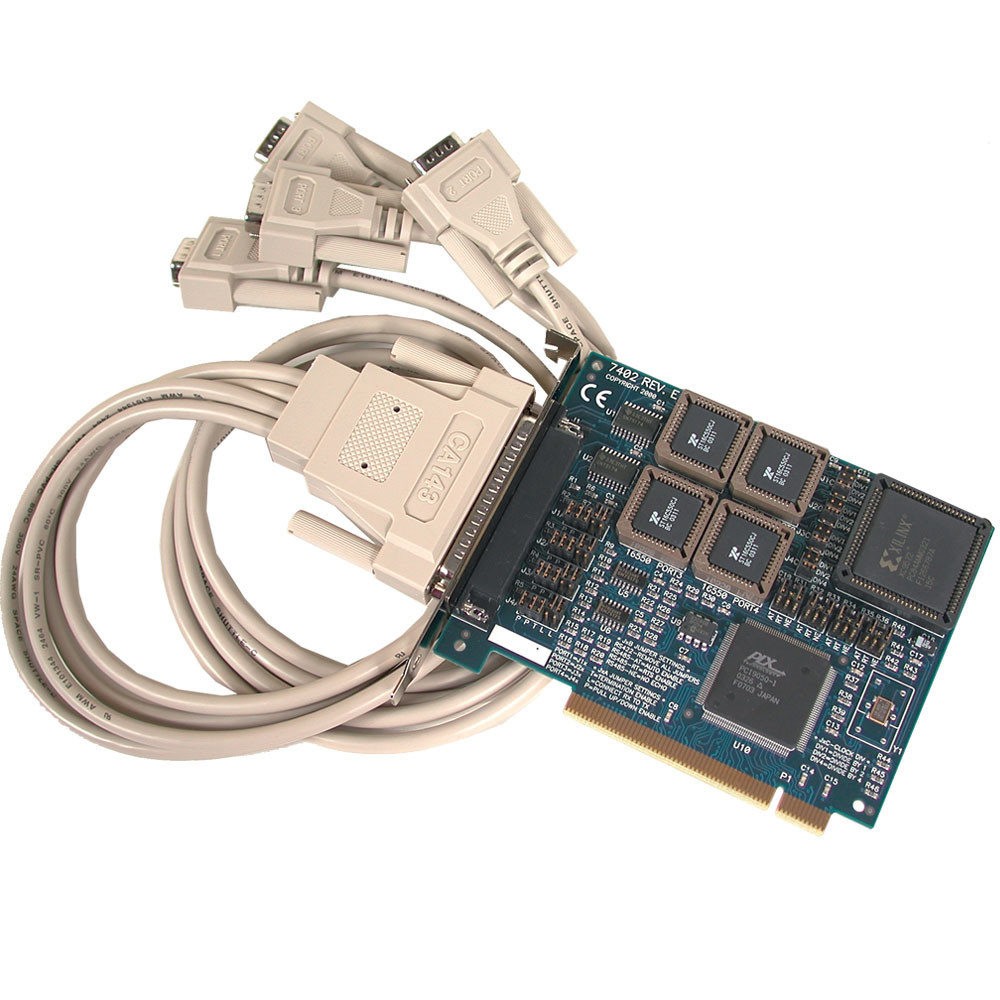

The 7402 PCI interface provides four serial ports, each individually configurable for RS-422 or RS-485. The board is capable of data rates to 460.8K bps and automatically handles RS-485 transmitter enable/disable. The 7402 utilizes 16C850 UARTs that provide 128-byte Tx/Rx FIFOs and ships with a 36-inch cable that terminates to four DB-9M connectors.

Sealevel’s SeaCOM software makes installation and operation easy using Microsoft Windows and Linux operating systems.


  • Specifications
  • Features
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI

  • Max Data Distance

    4000 feet

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • Communications Chip

    16C850

  • Electrical Interface

    RS-422, RS-485

  • Card Height

    Standard Profile

  • Synchronous / Asynchronous

    Asynchronous

  • # of Ports

    4

  • Max Data Rate

    460.8K bps

Features
