ULTRA-COMM+2.422: 2 Port Async PCI RS-422/485 Card ULTRA-COMM+2.422: 2 Port Async PCI RS-422/485 Card

ULTRA-COMM+2.422: 2 Port Async PCI RS-422/485 Card

Call for Price

7204-ROHS

  • This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing, product availability, and recommended alternatives.
Print Page

Product Details

This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing, product availability, and recommended alternatives.

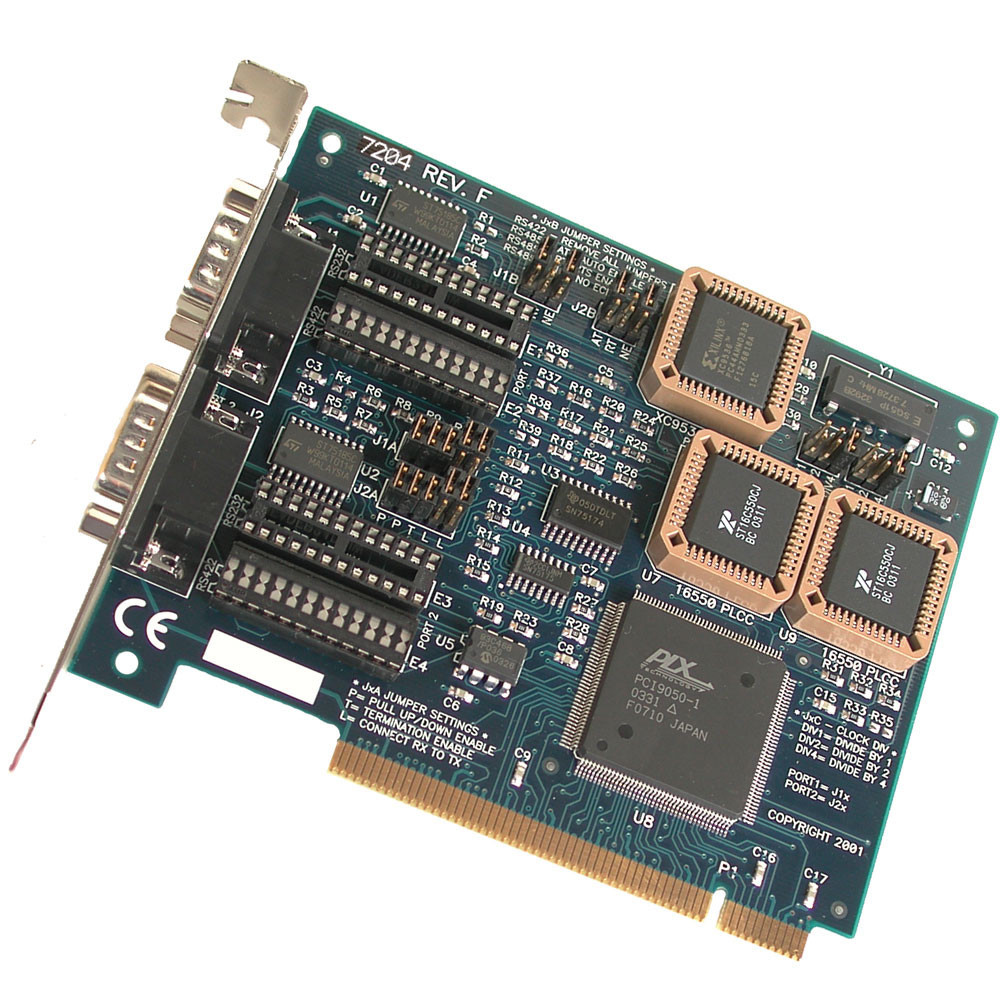

The 7204 PCI serial interface provides two serial ports, each individually configurable for RS-422 or RS-485. The board is capable of data rates to 460.8K bps and automatically handles RS-485 transmitter enable/disable. The 7204 utilizes 16C850 UARTs that provide 128-byte Tx/Rx FIFOs. Ordering options allow the choice of UARTs with support for custom baud rates and 9-bit protocols.

Sealevel’s SeaCOM software makes installation and operation easy using Microsoft Windows and Linux operating systems.

  • Specifications
  • Features
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI

  • Max Data Distance

    4000 feet

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • Communications Chip

    16C850

  • Electrical Interface

    RS-422, RS-485

  • Card Height

    Standard Profile

  • Max Data Rate

    460.8K bps

  • # of Ports

    2

  • Serial Connector(s)

    DB9

Features
