COMM+850.LPCI: 1 Port RS-232 Low Profile PCI Serial Adapter COMM+850.LPCI: 1 Port RS-232 Low Profile PCI Serial Adapter

COMM+850.LPCI: 1 Port RS-232 Low Profile PCI Serial Adapter

7104-ROHS

Print Page

Product Details

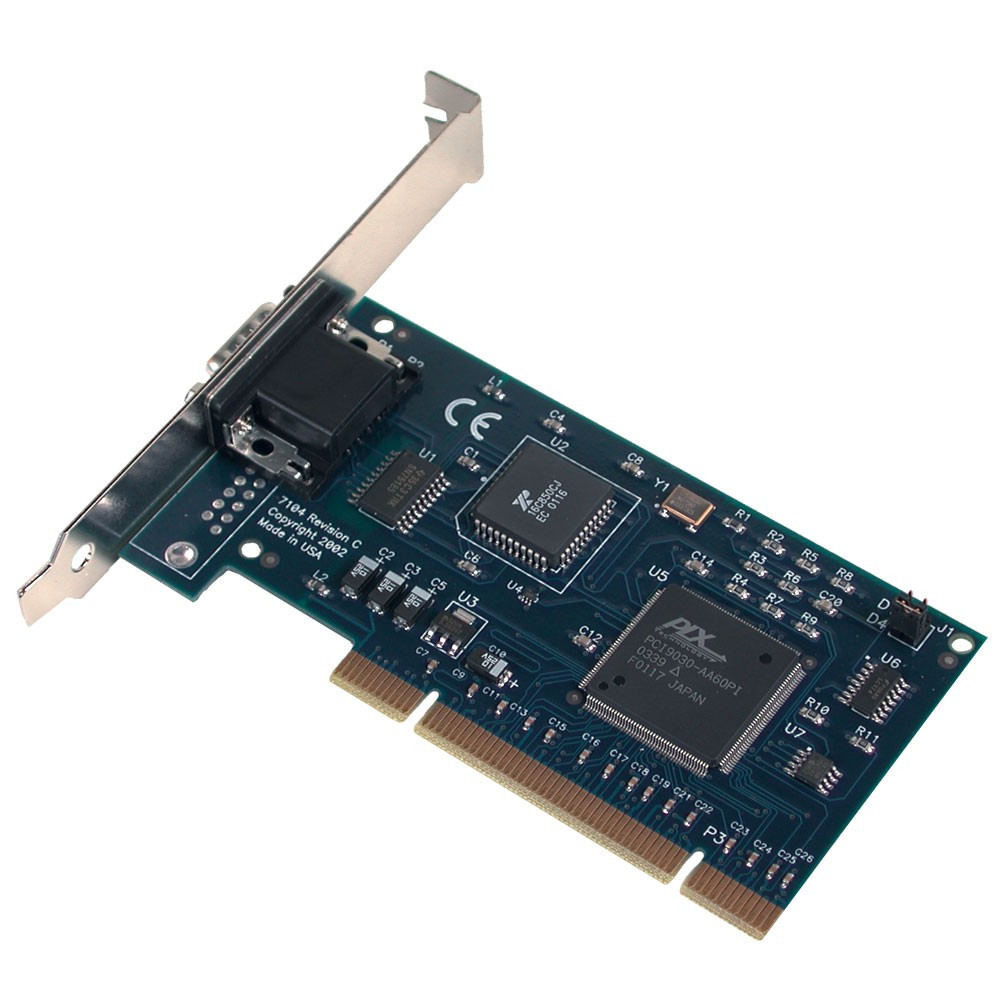

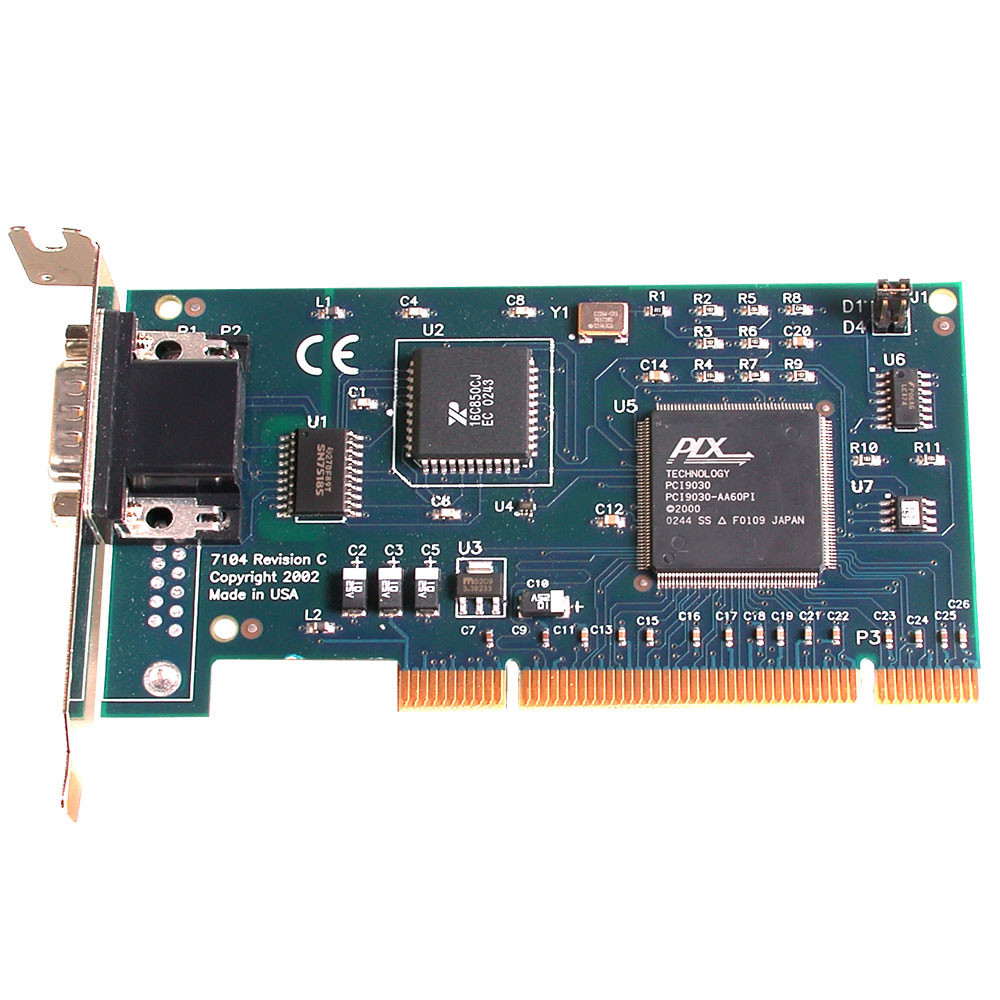

The 7104 Low Profile PCI serial interface provides one RS-232 serial port capable of data rates to 460.8K bps. The board utilizes a 16C850 UART to provide 128-byte Tx/Rx FIFOs for maximum reliability in data-intensive applications.

The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows or Linux operating systems.

The 7106e is a PCI Express X1 board compatible with any low profile PCI Express slot. If you have a standard size PCI Express slot, be sure to select the standard profile bracket.

The 7104 implements all modem control signals and is MD1 Low Profile and Universal Bus (3.3V and 5V) compatible. The 7104 is compatible with any low profile PCI slot. If you have a standard size PCI slot, be sure to select the standard profile bracket.
  • Specifications
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI

  • Max Data Distance

    50 feet

  • Max Data Rate

    460.8K

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • # of Ports

    1

  • Serial Connector(s)

    DB9M

  • Storage Temperature

    -50°C to 105°C (-58°F to 221°F)

  • Communications Chip

    16C850

  • Electrical Interface

    RS-232

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

  • Card Height

    Low Profile

  • Synchronous / Asynchronous

    Asynchronous

Software & Documentation

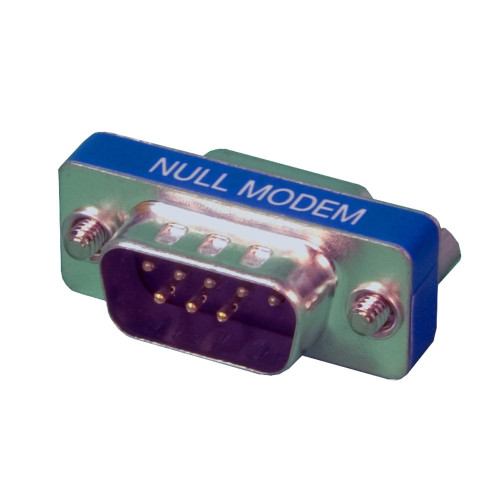

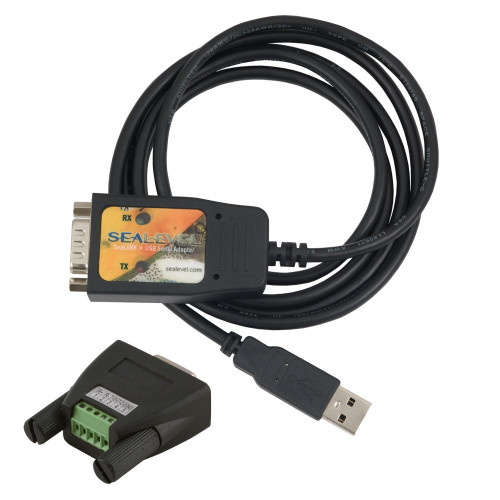

Recommended Accessories

!
