Industrial Computer; 1.6GHz Intel Atom N450; 2GB RAM

In Stock:

R1420

3.5" Single board computer includes 1.6GHz Intel Atom N450 processor and 2GB RAM
CompactFlash module and 2.5" drive bay are accessible without opening the enclosure
Wide temperature operation from 0 - 50C ambient
Silent solid-state design with no fans or other moving parts
Solid-state operation using CompactFlash memory or Solid-State Disk (SSD)
Maximum 2GB DDR2 667MHz RAM, 200-pin SODIMM (2GB Installed)
RJ45 Modbus RTU RS-485 pass-through port (supports N-series SeaI/O expansion modules)
Two 10/100/1000BaseT RJ45 (Intel 82567V, 82583V) Gigabit Ethernet ports with status LEDs
Recessed Reset switch
Type I/II CompactFlash bay accessible via removable plate
8-bit general purpose I/O (GPIO) available on 10-position removable terminal block
Six USB 2.0 ports (Four use high-retention connectors)
One analog VGA DB15 connector
One DB9M serial port (COM1, RS-232)
LED status indicators for power and disk activity
Integrated Intel Gen 3.5+ GFX Core graphics supports SXGA resolution up to 1400x1050 @ 75Hz
9-30VDC power input via 2-pin removable terminal block

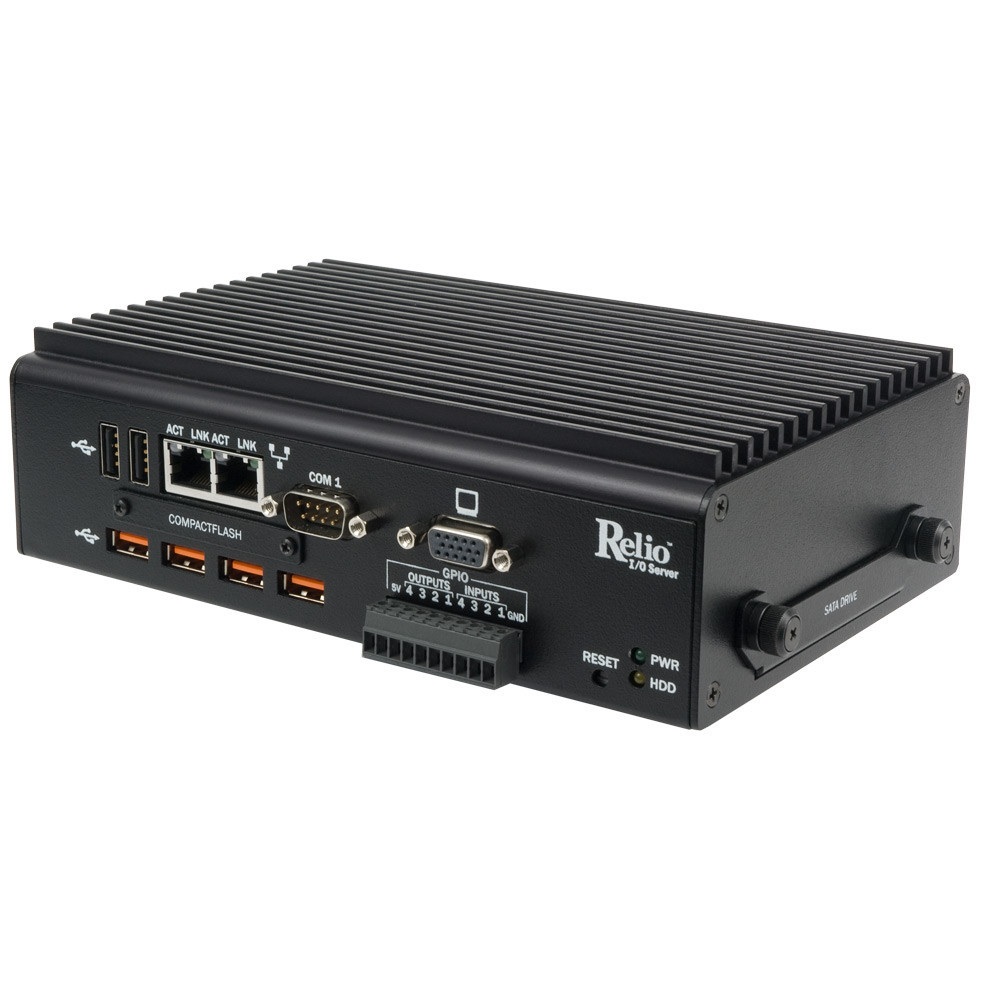

Relio R1420 industrial computer
Stereo audio out via standard 1/8" speaker connector
Supports APM, ACPI power management

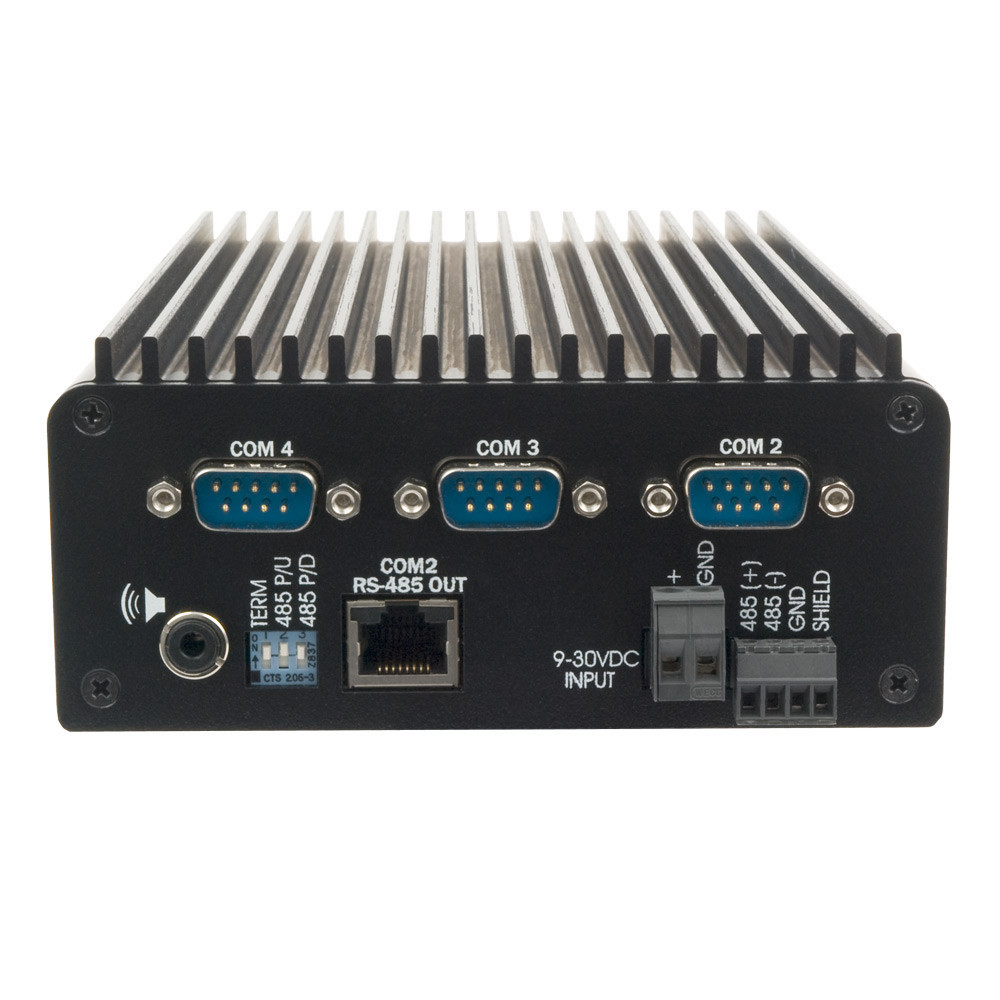

COM2 port accessible via DB9F (RS-232), RJ45 port (RS-485), or removable terminal blocks (RS-485)
Termination and biasing dipswitches for RS-485 port
Watchdog Timer with 255 level interval timer
Battery backup 3V/210mAH
Supports 2.5" SATA Solid-State Disk (SSD), accessible via thumbscrews
Three DB9M serial ports (COM2 = RS-232/485, COM3,4 = RS-232)
Optional power supply, cables and storage available as accessories

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

The Relio R1420 is a small, rugged embedded computer that operates without fans and is designed for harsh, industrial environments.

The Relio R1420 offers a wealth of standard I/O features including dual Gigabit Ethernet, six USB 2.0 ports, four serial ports, 8-bit GPIO, audio output and VGA video. Powered by a 1.6GHz Intel Atomå¬ N450 CPU, the R1420 includes 2GB RAM and offers very low power consumption while operating fanless up to 50C ambient. This makes the computer perfect for a variety of industrial and commercial environments including mobile applications, embedded control, test & measurement and HMI applications.

The system will operate from optional CompactFlash. An optional 2.5" SATA solid-state disk (SSD) can be integrated and preloaded with Microsoft Windows or Linux operating systems. Popular options include 32-bit and 64-bit versions of Windows 7 Professional. Linux is also supported. Operating from solid-state disk, the fanless design off
