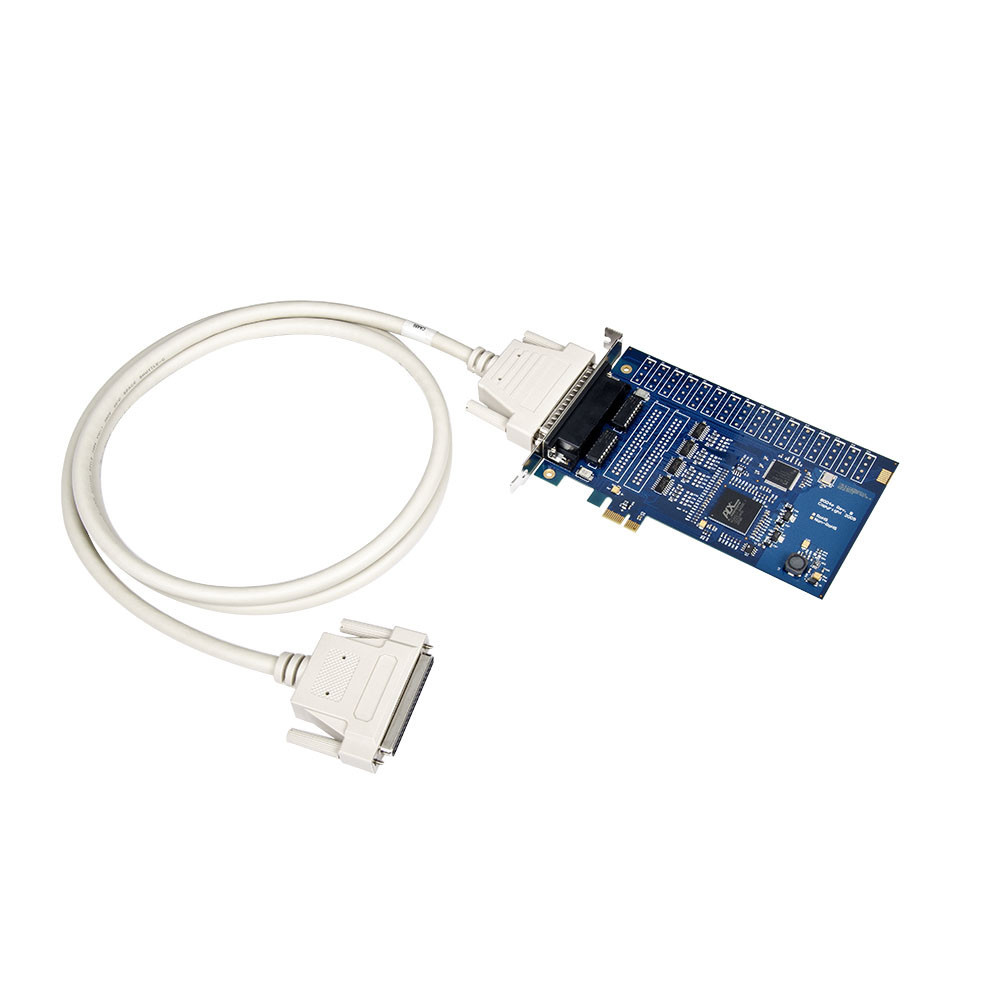

8006Hec - PCI Express 16 Isolated Inputs (10-30V)

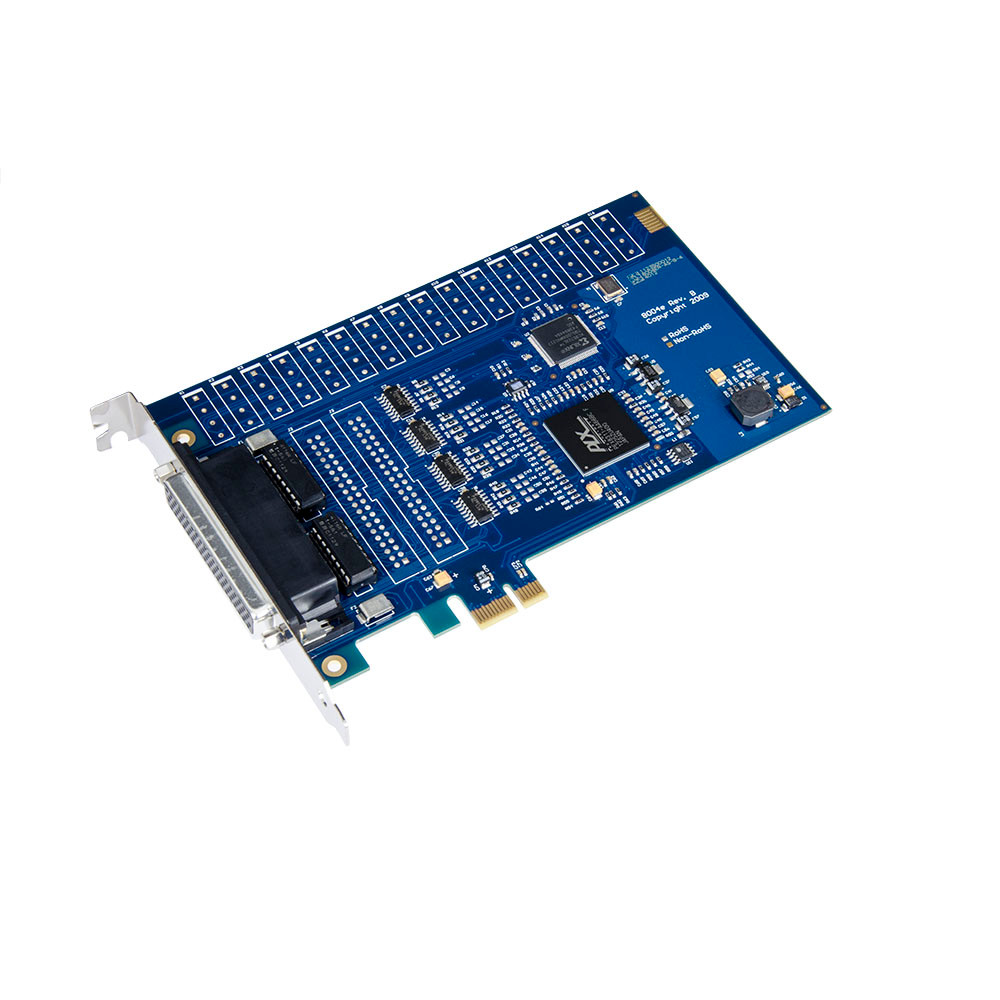

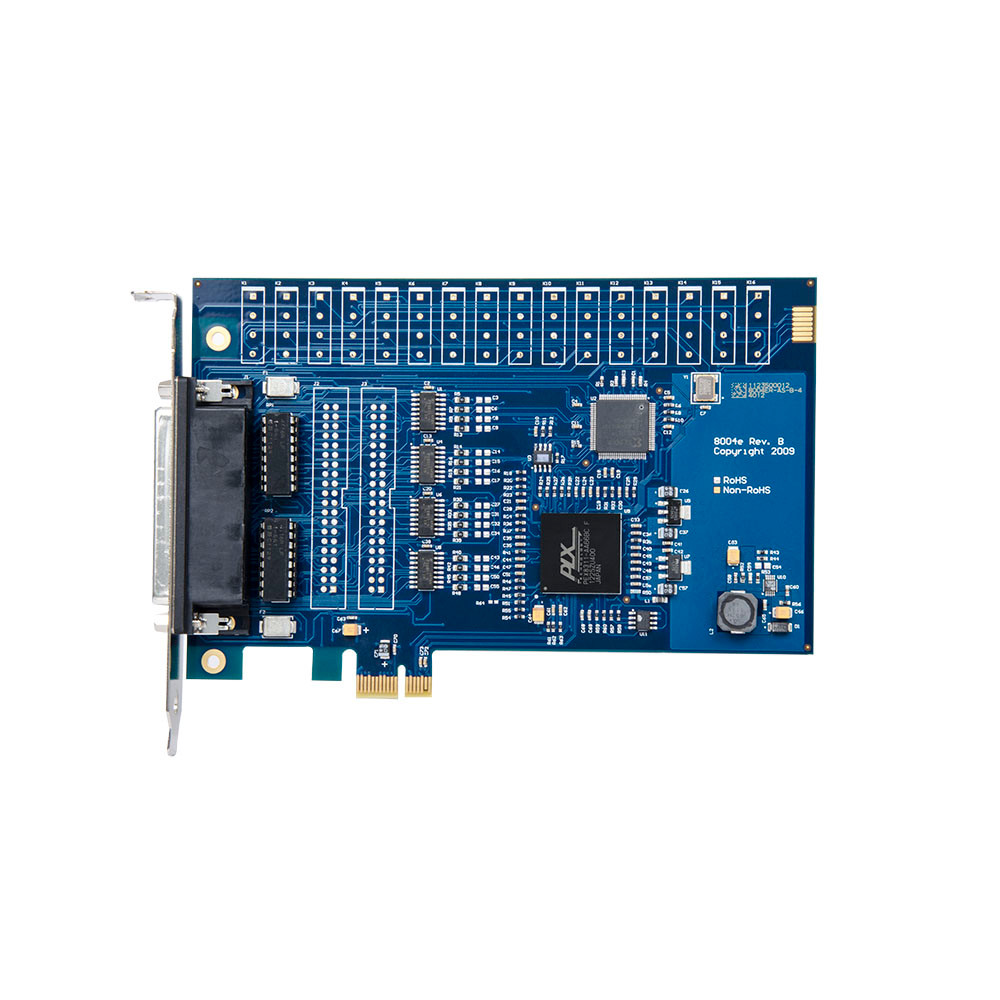

The 8006Hec PCI Express digital I/O interface provides 16 optically isolated inputs for connection to devices including sensors, switches, push-buttons, and other user inputs. The inputs can sense both AC and DC voltage while providing optical isolation, which eliminates spikes and surges present in industrial environments. The board is PCI Express X1 compliant and is compatible with any low profile PCI Express slot. A standard profile bracket is also included.

The inputs on the 8006Hec are rated for 10-30V. For inputs rated for 3-13V, order the 8006ec.

Sealevel SeaIO Classic software drivers and utilities make installation and operation of the 8006e easy using Microsoft Windows operating systems.

Get a jump start on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.
